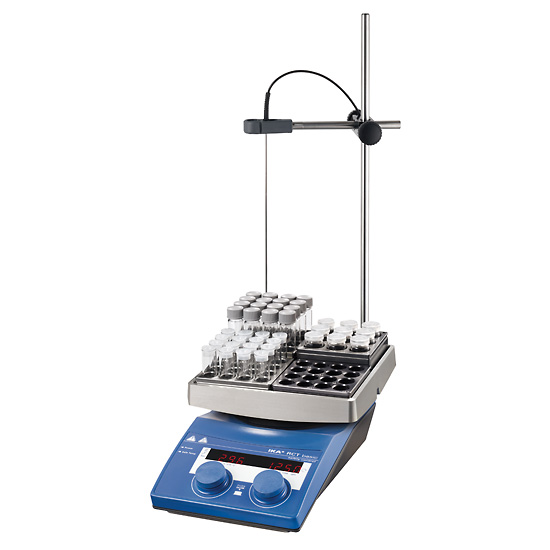

The carrier plate can be fitted with four identical or differing aluminium quarters, allowing up to 36 reaction vessels to be processed at the same time. The aluminium quarters guarantee optimal heat transfer throughout the process with no interference to the magnetic field. This ensures that all the containers are processed at the same temperature and that the contents are uniformly mixed. The different colours used for the various quarters makes them easier to distinguish.
- Multiple syntheses with only one magnetic stirrer.
- Uniform mixing in every vessel
- High-precision thermal conduction directly into the quarters
- Same temperature in all vessels
- Wide range of applications thanks to exchangeable quarters
- Safe and clean working
Package consists of:
- RCT basic safety control
- H 135.10 Square Carrier without handle
- 4 x Block (20 ml, 30 ml, 40 ml, 4 ml)
- H 16 V Support rod
- H 44 Boss head clamp
- H 38 Holding rod
|
搅拌点位数目
|
1
|
|
最大搅拌量 (H2O)
|
20 l
|
|
电机输入功率
|
16 W
|
|
电机输出功率
|
9 W
|
|
转速显示
|
LED
|
|
速度范围
|
0/50 - 1500 rpm
|
|
搅拌子最大长度
|
80 mm
|
|
加热输出功率
|
600 W
|
|
加热速度 1升H2O in H 15)
|
6.5 K/min
|
|
加热温度范围
|
室温 - 310 °C
|
|
加热温度控制
|
LED
|
|
加热温度控制精确度
|
1 ±K
|
|
转速控制
|
无级
|
|
可调安全温度回路最小值
|
50 °C
|
|
可调安全温度回路最大值
|
360 °C
|
|
外接温度传感器接口
|
PT1000
|
|
带传感器控温精确度
|
1 ±K
|
|
工作盘材质
|
铝合金
|
|
工作盘外形尺寸
|
Ø 135 mm
|
|
外形尺寸
|
160 x 85 x 270 mm
|
|
重量
|
2.5 kg
|
|
允许环境温度
|
5 - 40 °C
|
|
允许相对湿度
|
80 %
|
|
DIN EN 60529 保护方式
|
IP 42
|
|
电压
|
220 - 230 / 115 / 100 V
|
|
频率
|
50/60 Hz
|
|
仪器输入功率
|
650 W
|
