ZIRCONIUM™ UHPLC PUMPS

  • 商品编号:
    GDZ010644
  • 本店售价:
    询价
  • 商品货号:
    GDZ010644
  • 商品品牌:
  • 注册用户:
    询价
  • 市场价格:
    询价
  • 商品重量:
    1.000千克
  • 此商品为免运费商品,计算配送金额时将不计入配送费用
  • 用户评价:
    comment rank 5 (已有0人评论)
  • 购买数量:
    减少数量 增加数量
  • 商品总价:
  • 商品名称:ZIRCONIUM™ UHPLC PUMPS
  • 商品编号:GDZ010644
  • 品牌:Prolab
  • 上架时间:2018-06-13
  • 商品毛重:1.000千克
  • 库存: 100 台

产品介绍

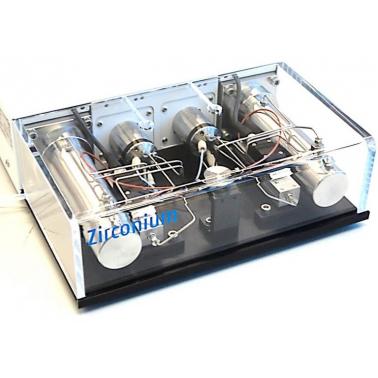

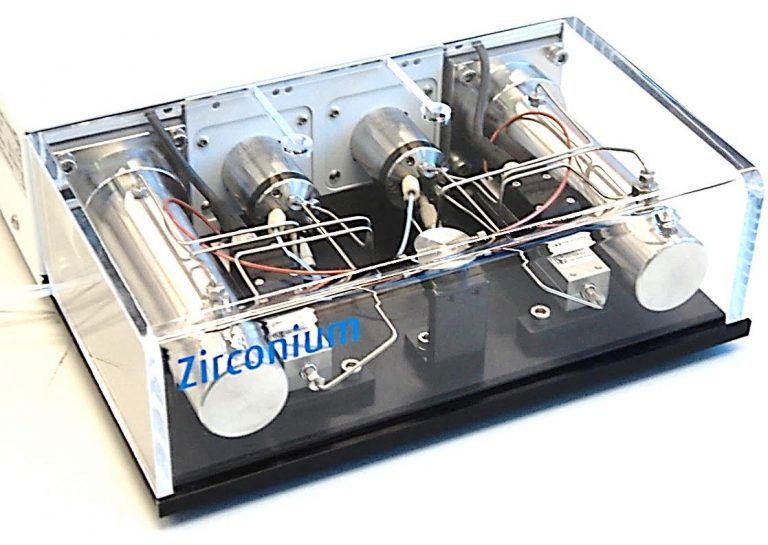

The Zirconium™ Ultra Nano- and Micro-UHPLC System is a binary gradient pump with a vast range of split-less flow rates from 4 nl/min to 500 µl/min at 1000 bar (15,000 psi). Methods can be scaled from conventional 2.1 mm ID columns down to 75 µm ID while using the same pump all the way, thereby achieving more than 700x sensitivity gain. The high resolution linear piston drives and optional flow sensors allow for highly precise gradient control at the lowest flow rates and highest pressures. Thanks to a unique, patented pump head and active valve design it is now possible to completely automate all preparative and diagnostic functions, individual pre compression of solvents for short equilibration times, and flow-through purging for automated solvent exchange and air removal. Comprehensive software support packages complete a UHPLC system which remains unmatched on the market today.

产品特点


Zirconium Ultra
Zirconium SP
Flow range
4 nl/min to 500 µl/min
40 nl/min to 2000 µl/min
Max. operating pressure
15,000 psi (1000 bar)
4,500 psi (300 bar)
Stroke volume/channel
1350 µl
5500 µl
Pump operation modes
Binary single-stroke gradient
Binary gradient with continuous flow (with staggered refill)
Dual single-channel single-stroke pumps (executing two methods at the same time independently)
Piston Control Modes
Target speed
Target pressure
Target flow (with flow sensors option)
Temperature control
Pump head/valves compartment: Ambient to 50 °C
Column (optional): Ambient to 90 °C
Software controls
User-friendly stand-alone software and method editor
Software drivers for Chromatography Data Systems (CDS) from various vendors
Software Development Kit (SDK) for custom/OEM integrations
PC connection
RS232
USB
Ethernet (TCP/IP) with integrated Ethernet switch and second port to connect further instruments
I/O Interfaces
4 digital inputs
4 digital outputs (isolated)
Accessory interfaces
Prolab column oven (controllable from LC method)
2 multi-purpose switched 24V outputs (for Degassers or other accessories, controllable from LC method)
Wetted parts
Stainless steel, zirconium dioxide, Fluoroloy A09, fused silica, PEEK, HPFA, ETFE.
Power Requirements
100-240V AC, 50/60 Hz, max. 120 W
Dimensions (w x h x d)
268 mm x 92 mm x 558 mm
Weight
19.5 kg
Standards Conformance
UL 61010-1, 3rd Edition
CAN/CSA-C22.2 No. 61010-1-12, 3rd Edition
Low-Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
DIN EN 61010-1:2010
DIN EN 61326-1:2013
 Specifications are subject to change without prior notice. All trademarks are the properties of their respective owners.
