New design. More features. Same performance.

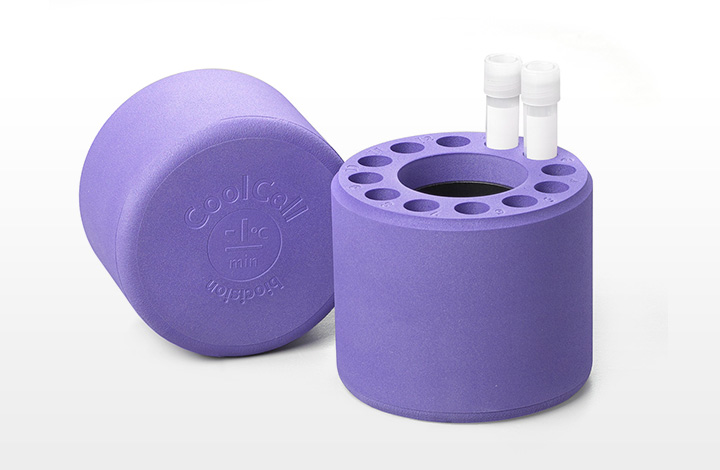

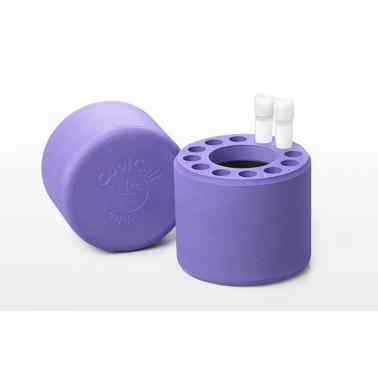

CoolCell 5ml LX alcohol-free freezing container holds 12, 3.5 mL to 5.0 mL cryogenic vials and provides a highly reproducible -1℃/minute freezing rate when used in a -80℃ freezer. No alcohol or fluids required. The insulative outer housing and thermo-conductive core ensure consistent heat removal to all vials throughout the freezing period. CoolCell containers are unbreakable, open easily when frozen, and are not cold to the touch when frozen - no "frosty" fingers. Enhanced design features include beveled junction between base and lid to allow quicker opening once frozen, numbered vial wells for easy sample identification, and exposed vial tops when container is open allowing for faster removal of vials for placement onto dry ice or liquid nitrogen.
Proven for use with stem cells, primary cells and cell lines.
Save money and go green! If used regularly, CoolCell containers save approximately $350/year per unit over isopropanol-based freezing containers by eliminating alcohol purchase and hazardous waste disposal.
Holds 12 x 3.5 mL to 5.0 mL cryogenic vials. Cryogenic vials fill volume: 3.5 mL to 5.0 mL per vial. Fill empty wells with CoolCell Filler Vials, 5 mL to ensure constant -1℃/minute freeze rate.
CoolCell 5ml Freezing Profile with Varying Volumes of Media
Performance test: Beginning at room temperature, 5.0 mL cryogenic vials containing varying amounts of freezing media from 3.0 mL - 5.0 mL were placed into a CoolCell 5ml and this unit was then placed directly into a -75°C freezer. Using a thermocouple temperature probe the temperature of the freezing media was recorded at 10 second intervals over a 3.5 hour period.
Conclusion: BioCision’s CoolCell 5ml rate controlled freezing module provides consistent vial to vial freezing and fusion duration cycle after cycle, regardless of the volume of media in the 5.0 mL cryogenic vial - consistently showing highly reproducible controlled freezing rate of -1°C/min through until fusion.
CoolCell 5ml LX product brochure
More CoolCell information and performance data
Dimensions (Diam x H): 9.5 x 14.5 cm / 3.8 x 5.8 in
Well Diam: 15.2 mm / 0.59 in
Made in USA.
