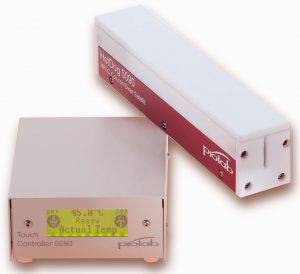

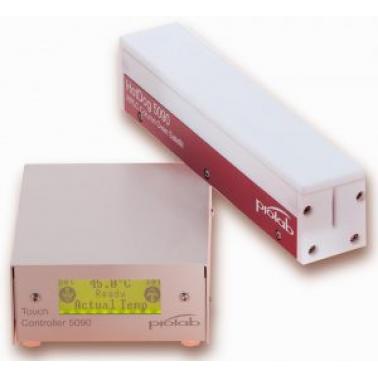

Prolab HPLC 柱温箱

产品特点

• Simple and fast assembly with unique holding adapters, fits easily into existing systems
• Exact temperature control for highest reproducibility and stability
• Temperatures up to 90°C can significantly reduce back pressure with small particle sizes and accelerates the chromatography
• Fits column lengths up to 150 mm
• Can be controlled directly via the Zirconium UHPLC system, or via an optional touch screen controller for manual control
• Software drivers for Analyst, Xcalibur and others systems

产品规格

可选配件

1. Hotfix 5090



   The Hotfix 5090 serves as the Hotdog 5090’ s holder for the CTCPAL autosampler and can be mounted close to the injection port to reduce the length of connection / transfer lines.

   The Hotfix 5090 Adapter to CTCPAL® autosampler.



2. Magfix 5090



   The Magfix 5090 is designed as the Hotdog 5090 c olumn ov en holder f or magnetizable housings. The Magfix 5090 is specially designed fo r attaching the Hotdog 5090 c olumn ov en to Applied Biosystems|MDS SCIEX mass spectr ometers (API 3200 TM , API 4000 TM , API 5000 TM and QT ra p TM instruments).

   The Magfix 5090 adapter to Applied Biosystems|MDS SCIEX mass spectrometers (API 3200TM, API 4000TM, API 4000TM and QTrapTM instruments



3. Clampfix 5090



   The Clampfix 5090 is f or mounting the Hotdog 5090 c olumn ov en on certain Thermo Fisher Scientific mass spectr ometer ion sour c es (MS - W133 mm).

   The Clampfix 5090 adapter to Thermo Fisher Scientific mass  spectrometers (MS-W133 mm).



4. Heatfix 5090 ST( LV )



   The Heatfix 5090 he at exchanger can be used as a connection / transfer line betw een injection port and c olumn. The He atfix 5090 consists of tw o gilded copper plates which ar e placed inside the column c ompartment . A stainless steel ca pillary f eeding th ro ugh these tw o plates pr ehe ats the HPL C solv ents, ther eb y r educing ra dial and axial temper atur e gradients inside the HP LC c olumn. The Heatfix 5090’ s biggest improve mentsare evident at longer gradients and higher temperature.



5. Softfix 5090

   The optional software package Softfix 5090includes a standalone version (WindowsTM compat- ible) and drivers for AnalystTM and XCaliburTM. In addition, the interface software parameters for remote control are included in the manual and freely available .



性能表现

Flow	250 μl/min
Column	Phenomenex Luna 2.5 mm C18 (2) HST 2 x 50 mm
Mobile Phase	60/40 Methanol/Water
Temperature	0/60/90°C
Pressure	181/111/85 Bar



Flow	250 μl/min
Column	Phenomenex Luna 2.5 mm C18 (2) HST 2 x 50 mm
Mobile Phase	60/40 Methanol/Water
Sample	A: Toluene B: Anthracene
Wavelength	254nm



Presure	181 Bar
Column	Phenomenex Luna 2.5 mm C18 (2) HST 2 x 50 mm
Mobile Phase	60/40 Methanol/Water
Sample	A: Toluene B: Anthracene
Wavelength	254nm
