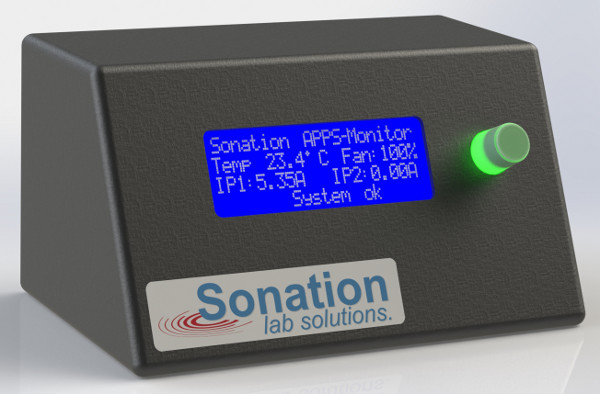

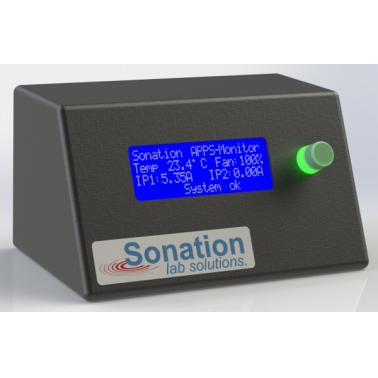

The display can be connected to all Sonation products with APPS-Module. All important informations are clearly shown. The most important are:
- Current temperature
- Min. and max. temperature
- Current drawn by the connected vacuum pump
- Min. and max. current of the connected vacuum pump
- Driving speed of the fans
- Operating hours
- Alert in plain text instead of the beep codes with only the APPS-Module
Description of the connections:
- AUX: A potential-free output for the communication with other instruments. It can be used to shutdown a connected mass-spec in case of an pump failure.
- PC: With the optional interface cable the display module can be connected to a PC to process the data with additional software.
- APPS IN1: The APPS-Module is connected to this connector
- APPS IN2: At the moment without function. Later here can be connected a second APPS-Module.
