Z-Hab迷你斑马鱼饲养系统

Z-HAB MINI 桌面型斑马鱼饲养系统

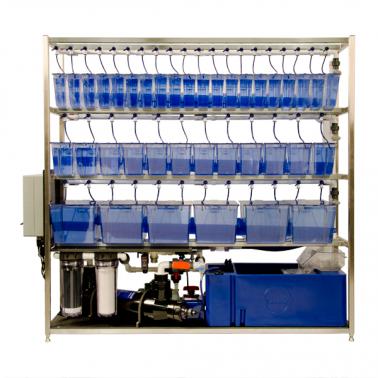

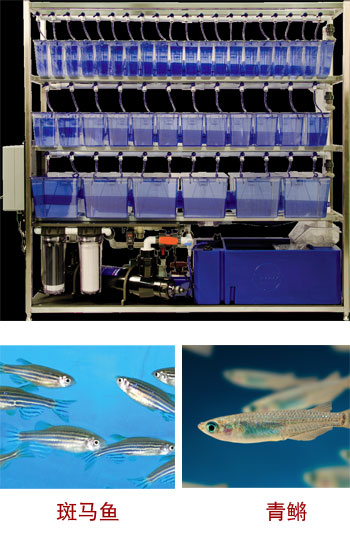

The Z-Hab Mini benchtop system is ideal for labs that have no floor space and limited counter space. Each shelf holds six 10-liter, twelve 3-liter or twenty 1.5-liter tanks. Mix and match for added versatility! Ask about our competitive lead times today.

产品特点

巨棒的工业设计

• Oversized, 5-stage, state-of-the-art filtration ensures optimal water quality
• Low water level safety shut-off and alarm with optional programmable logic controller (PLC) control panel
• Heavy-duty, powder coated 316L stainless steel construction provides corrosion resistance, durability and ease of maintenance.

方便

• Filter and UV bypass allow service while system runs
• Automatic water exchange saves time and reduces labor
• Central PLC control panel (optional)

灵活

• Two- to three-shelf models available
• Ergonomic, autoclavable polycarbonate tanks (1.5-, 3.0- and 10.0-liter sizes), lids and baffles
• Each Z-Hab Mini System includes an unconditional 2-year warranty and 24/7 emergency support

组成部分

供水

• Culture volume 180 liters (48 gal)—126 liters (33 gal) as shown
• Zebrafish holding capacity @ 10 adult fish/liter: 1,800 fish—1,260 as shown
• Total water volume: 252.5 liters (67 gal)—98 liters (52 gal) as shown
• 6 tank water exchanges per hour

电源

• 120V/10.25 A/50 or 60 Hz
• 240V/5.1 A/50 or 60 Hz

5级过滤

• 1st Stage: 120-micron filter pad
• 2nd Stage: Combined moving and submerged-bed biological filtration (over 32 m2 of surface area)
• 3rd Stage: 50-micron filter cartridge
• 4th Stage: Activated carbon adsorbs volatile organics and other contaminants
• 5th Stage: UV disinfection dose of 110 mJ/cm2 at end of lamp life

其他

• Air diffusers in biofilter provide supplemental aeration and degassing
• Titanium heater maintains temperature differential of 5º C
• Weight with water: 195 kg (430 lbs)

选配件

• Automated water quality monitor/control/alarm system
• Individual photoperiod control for each shelf (5-shelf tall systems only)
• Total gas pressure monitor/controller
• Breeder tanks
