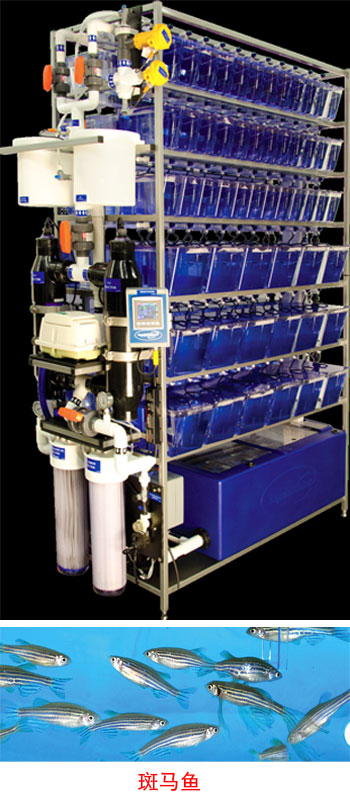

Z-Hab双面斑马鱼饲养系统

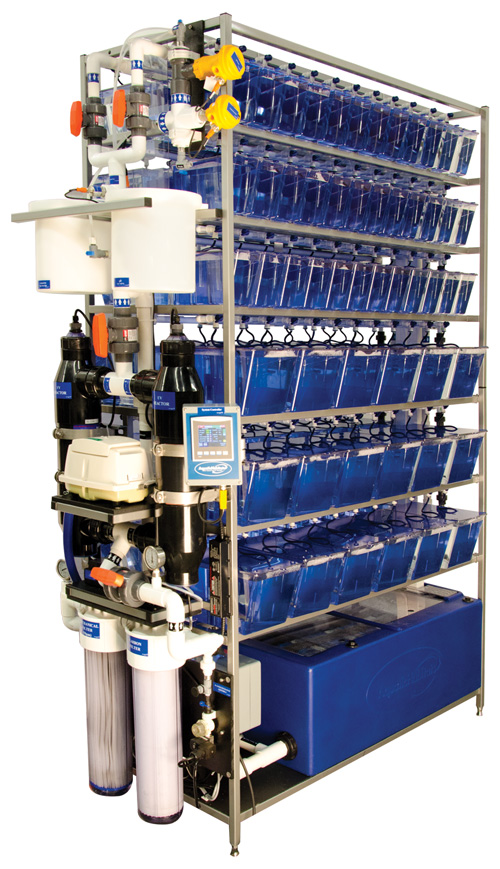

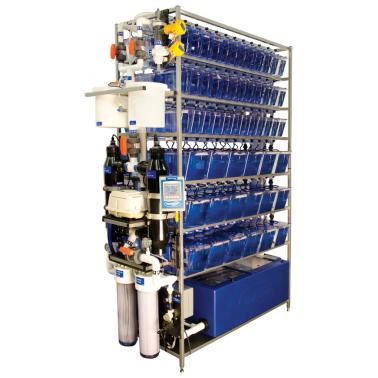

Z-HAB DUO SYSTEMS

Double the capacity of the Z-Hab system while minimizing maintenance. Ask about our competitive lead times today.

产品特点

巨棒的工业设计

• Oversized, 5-stage, state-of-the-art filtration ensures optimal water quality

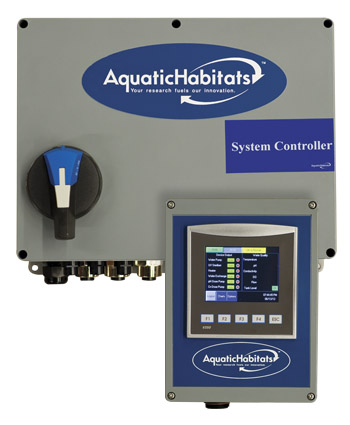

• C351 programmable logic controller (PLC) control panel with low water level safety shut-off and alarm
• Heavy-duty, powder coated 316L stainless steel construction provides corrosion resistance, durability and ease of maintenance.

方便

• Filter and UV bypass allow service while system runs
• Automatic water exchange saves time and reduces labor

灵活

• Choose from five-shelf and six-shelf systems
• Ergonomic, autoclavable polycarbonate tanks (1.5-, 3.0- and 10.0-liter sizes), lids and baffles

节省空间

• Housing life support and filtration, monitoring, controlling and alarming all in 16 ft2

高效

• Two water pumps ensure flow to tanks should one fail
• Two UV reactors ensure disinfection of system water should one fail
• Each Z-Hab Duo System includes an unconditional 2-year warranty and 24/7 emergency support

组成特点

供水

• Culture volume 600 liters (158 gal)—576 liters (152 gal) as shown
• Zebrafish holding capacity @ 10 adult fish/liter: 6,000 fish—5,760 fish as shown
• Total water volume: 827 liters (218 gal)—804 liters (212 gal) as shown
• 6 tank water exchanges per hour

电源

• 120V/10.25 A/50 or 60 Hz
• 240V/5.1 A/50 or 60 Hz

5级过滤系统

• 1st Stage: 120-micron filter pad
• 2nd Stage: Combined moving and submerged-bed biological filtration (over 32 m2 of surface area)
• 3rd Stage: 50-micron filter cartridge
• 4th Stage: Activated carbon adsorbs volatile organics and other contaminants
• 5th Stage: UV disinfection dose of 110 mJ/cm2 at end of lamp life

其他

• Air diffusers in biofilter provide supplemental aeration and degassing
• Titanium heater maintains temperature differential of 5º C
• Weight with water: 1,134 kg (2,500 lbs)

可选配件

• Automated water quality monitor/control/alarm system
• Breeder tanks
• Baby baffles for larval rearing
• Powder-coating
